Upgrading in-place to Windows
Server 2012
YES – You can upgrade domain
controllers that run 64-bit versions of Windows Server 2008 or Windows Server
2008 R2 to Windows Server 2012.
NO - You cannot upgrade domain
controllers that run Windows Server 2003 or 32-bit versions of Windows Server
2008.
Functional Levels Considerations
- Windows Server 2012
requires a Windows Server 2003 forest functional level or higher.
- Before you can add a DC
that runs Windows Server 2012 to an existing AD forest, the forest functional
level must be Windows Server 2003 or higher.
- If the forest functional
level is Windows 2000, the installation is also blocked.
Operation Master Roles
Considerations
Some new features in Windows Server
2012 that affect operations master roles:
- The PDC emulator must be
running Windows Server 2012 to support cloning virtual domain controllers.
- The Relative Identifier
(RID) Master has new RID issuance and monitoring functionality. The
improvements include better event logging and more appropriate limits.
- New security principals
are created when the PDC emulator runs Windows Server 2012.
Active Directory Considerations
– New Features
- CUI-based command-line installations
are performed by using the ADDSDeployment Module in Windows PowerShell.
- GUI-based promotions are performed in
Server Manager using a completely new Active Directory Domain Services
Configuration Wizard.
Active Directory – Tool changes
There are some tool changes related to
AD DS:
1. Deprecation of
Adprep32.exe
There is only one version of Adprep.exe: It can be ran as needed on 64-bit domain controllers that run Windows Server 2008 or later. The system determines this.
There is only one version of Adprep.exe: It can be ran as needed on 64-bit domain controllers that run Windows Server 2008 or later. The system determines this.
2. Deprecation of
Dcpromo.exe: It can still be run with an answer file and through PowerShell.
Prerequisites
1. Download Windows Server
2012 R2. You also have the ability to complete this Step-By-Step in a virtual
lab by downloading Hyper-V Server 2012 for free.
2. As a precaution, complete
a full backup of your existing server.
3. Check the Schema version
of AD DS (Before adprep) by running regedit, navigating to
Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\NTDS\Parameters
and noting the current Schema version.
Model Solutions
Step 1: Raise Forest Functional
Level (DCSrv2008)
1.
On Run, type domain.msc
and press enter.
2.
Right click Active
Directory Domains and Trusts and select Raise Forest Functional Level... in the
sub menu.
3.
Ensure that the forest
functional level is Windows Server 2003 or higher.
Step 2: Preparing your existing
forest via the adprep command
1.
On run, type regedit and
press enter.
2.
Check the Schema version
of AD DS (Before adprep) by running regedit, navigating to
Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\NTDS\Parameters
and noting the current Schema version.
3.
Insert the Windows Server
2012 DVD into the DVD drive of the Windows Server 2008 R2 AD DS.
4.
On run, type cmd and
press enter.
5.
On command prompt, type
D: and press enter then type cd support\adprep and press enter (D: DVD drive of
DCSrv2008)
6.
Type adprep /forestprep
and press enter.
7.
Type C and press enter.
8.
After 3-5 minutes, type adprep /domainprep and press enter.
9.
Check the Schema version
of AD DS (after adprep) by running regedit, navigating to Compute \HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\NTDS\Parameters
and noting the current Schema version.
Step 3: Adding additional Domain
Controller (Windows Server 2012)
1.
Logon DCSrv2012 by
Administrator domain account.
2.
Open Server Manager,
click Manage then click Add Roles and Features.
3.
In the Before You Begin
window, click next.
4.
In the Select
installation type window, select Role-based or feature-based installation then click next.
5.
In the Select destination
server window, click Select a server from the server pool and click next.
6.
In the Select Server
Roles window, select Active Directory Domain Services and click next.
7.
In the Add features that
are required for Active Directory Domain Services window, click Add Features.
8.
In the Select features
window, click next.
9.
In the Active Directory
Domain Services window, click next.
10. In the Confirm
installation selections window, select Restart the destination server automatically if required then click Install

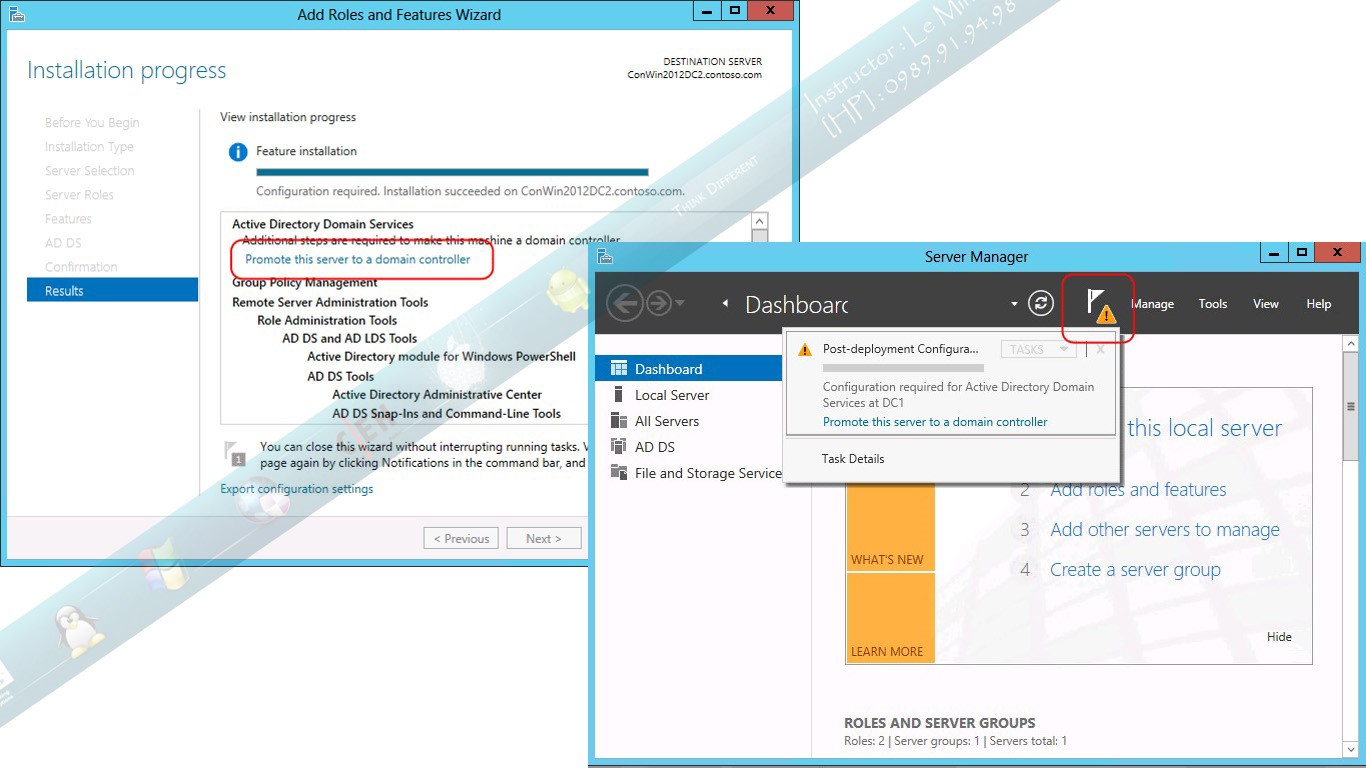

11.
In the Installation
progress window, click Close.
12.
On Server Manager, click
Notifications and then click Promote this server to a domain controller.
13.
In the Deployment
Configuration window, click Add a domain controller to an existing domain.
Specify the domain information for this operation Domain: minhtuan.local and
then click Next.
14.
In the Domain Controller
Options windows, ensure that both the Domain Name System (DNS) server and
Global Catalog (GC) check boxes are selected. Confirm that Site Name: is set to
Default-First-Site-Name. Under Type the Directory Services Restore Mode (DSRM)
password, type in both text boxes and then click Next.
15.
On the DNS Options page,
click Next.
16.
On the Additional Options
page, select DCSrv2008.minhtuan.local in the Replicate from drop-down box.
17.
On the Paths windows,
click Next.
18.
On the Review Options
windows, click Next.
19.
On the Prerequisites
Check windows, confirm that there are no issues, and then click Install.
20. Installation Process
begins.. and server will automatically reboot after Installation Finished.
21. Open Active Directory
Users and Computers, expand minhtuan.local and click Domain Controller OU
.Verify DCSrv2012 Server is listed.
22.
Open DNS Manager,
right-click on minhtuan.local and select Properties and then click Name Servers
Tab. Verify that DCSrv2012.minhtuan.local is listed in Name Servers: lists.
23.
Open Active Directory
Sites and Services; verify that DCSrv2012 is listed in Servers under
Default-First-Site-Name.
Step 4: Transfer FSMO roles to
the Windows Server 2012 Domain Controller: (solution A)
1.
Log on DCSrv2012 new
domain controller, Open the Command Prompt and type netdom query fsmo. Verify the FSMO Roles on
Windows Server 2008 R2 Server(DCSrv2008)
before we transfers FSMO roles to new Windows Server 2012 Server( DCSrv2012)
2. In the command prompt,
type ntdsutil and press enter.
3. Type roles and press
Enter. The prompt will display “fsmo maintenance:”
4. Type connections and
press Enter. The prompt will display “server connections:”
5. In the “server
connections: “, type connect to server
DCSrv2012.minhtuan.local and press enter ( where DCSrv2012 is the name of
the target Windows Server 2012)
6. Type quit and press
enter. The prompt will display “fsmo maintenance:”
7. In the “fsmo
maintenance:” type “?” for help
8. In the “fsmo maintenance:
“ , type transfer schema master and
Press enter and Click Yes On Role
Transfer Confirmation Dialog box to confirm the Operations Master change.
9. Result
10. Do the same process for:
transfer naming master, transfer PDC, transfer RID master and transfer
infrastructure master.
11. Type quit and press
enter; the type quit and press enter again to exit the ntdsutil
12. Verify the FSMO Roles on
new Windows Server 2012 Domain Controller, DCSrv2012.
Step 4: Transfer FSMO roles to
the Windows Server 2012 Domain Controller: (solution B)
1.
On Run, type powershell
and press enter.
2.
On command prompt, type Move-ADDirectoryServerOperationMasterRole
–Identity DCSrv2012 –OperationMasterRole SchemaMaster, DomainNamingMaster,
PDCEmulator, RIDMaster, InfrastructureMaster and press enter.
Step 5: Remove the legacy domain
controller
1.
On DCSrv2008, Click
Start, Click Run, type dcpromo and then click OK.
2.
On the Welcome to the
Active Directory Installation Wizard page, click Next.
3.
On the Delete the Domain
page, leave Delete the domain because this server is the last domain controller
in the domain.
4.
On the Administrator
Password Page, type Password in both password textboxes and click Next.
5.
On the Summary page,
click Next. Wait for the process to complete and then click Finish.
6.
On the Completing the
Active Directory Domain Services Installation Wizard, click Finish.
7.
On the Active Directory
Domain Services Installation Wizard page, click Restart Now to Restart the
server.
8.
After restart the server,
DCSrv2008 computer account will automatically move from Domain Controller OU to
Computers OU because now DCSrv2008 is only the member server.
9.
Lastly disjoin Windows
Server 2008 R2 (DCSrv2008) from the domain to a workgroup and remove any
unnecessary record from Active Directory Sites and Services.
10.
Click Yes
Summary:
Finally, we successfully Migrated
Active Directory Domain Controller from Windows Server 2008 R2 to Windows
Server 2012, which is an easy process. I hope this article will help you in the
near future when you are Active Directory Domain Controller from Windows Server
2008 R2 to Windows Server 2012.
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
